TD-400H
NC Rotary Table (0.001°)

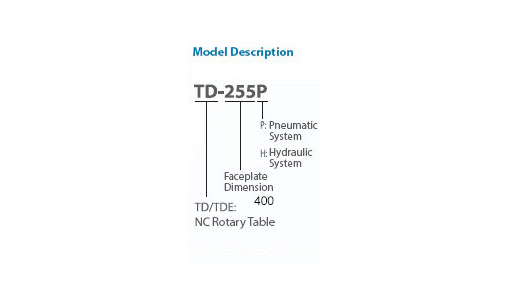

TD-400H
Standard Series
- Adopted patented disk hydraulic clamping system . It can assure heavy and steady cutting without any deviation from the centre (TD-400~630).
- The feature of wear resistant alloy Dual-Lead Worm Gear is high mechanical e-ciency of power transmission, high indexing accuracy, and easy adjusted on the backlash.
- Driven by the servo Motor. E-ciently in position, high accuracy, Low noise and suitable for any angles working piece.
- It can be added with air booster or hydraulic unit.
- It can be connected with CNC machine as a 4th Axis or matched with Single Axis Controller as an additional Axis.
| Use Method | Vertical/Horizontal Use or Vertical Special-Purpose | |
|---|---|---|
| Clamp Method | Hydraulic 35kg/cm2 | |
| Faceplate Dimension | Ø400mm | |
| Spindle Through Hole Diameter | Ø40mm | |
| Faceplate Centre Hole Diameter | Ø40H7mm | |
| Centre Height | 255mm | |
| Faceplate T-Slot Width | 14H7mm | |
| Position Key | 18h7mm | |
| Servo Motor | • FANUC | α12i |
| •MELDAS | HF204S | |
| Total Speed Reduction Ratio | 1/180 | |
| Min. Increment Unit | 0.001° | |
| Indexing Accuracy | 15 (Arc. Sec.) | |
| Repeatability | 4 (Arc. Sec.) | |
| Clamp Force | 180kgf-m | |
| Max. Torque Capacity of Worm Gear | 180kgf-m | |
| Max. Workpiece of Capacity | • Workpiece Vertical (With Tailstock) |
200(500)kg |
| • Horizontal | 500kg | |
| Net Weight (Without motor) | 300kg | |
