TE-125AP
Worm Gear Rotary Table

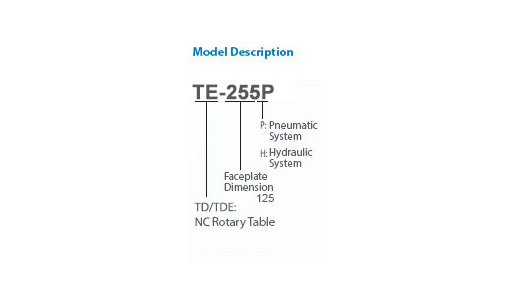

TE-125AP
Practical Type Series
- The feature of wear resistant alloy Dual-Lead Worm Gear.
- Easy adjusted on the backlash.
- The faceplate can separate with the table to save the space.
- It can be connected with CNC machine as a 4th Axis or matched with Single Axis Controller as an additional Axis.
- Minimum increment unit : 0.001°.
| Use Method | Vertical / Horizontal Use | |
|---|---|---|
| Clamp Method | Pneumatic 5kg/cm2 | |
| Faceplate Dimension | Ø125mm | |
| Spindle Through Hole Diameter | Ø15mm | |
| Faceplate Centre Hole Diameter | Ø22H7mm | |
| Centre Height | 110mm | |
| Faceplate T-Slot Width | 12H7mm | |
| Position Key | 14h7mm | |
| Servo Motor | • FANUC | α2i / β2i |
| •MELDAS | HF44T/HF-75S | |
| Total Speed Reduction Ratio | 1/45 | |
| Min. Increment Unit | 0.001° | |
| Indexing Accuracy | 90 (Arc. Sec.) | |
| Repeatability | 4 (Arc. Sec.) | |
| Clamp Force | 8kgf-m | |
| Max. Torque Capacity of Worm Gear | 15kgf-m | |
| Max. Workpiece of Capacity | • Workpiece Vertical (With Tailstock) |
20(50)kg |
| • Horizontal | 50kg | |
| Net Weight (Without motor) | 19kg | |
Unit: mm
| The outline of dimension | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TE-125AP | Servomotor cover type | A | B1 | B2 | C1 | C2 | D | E1 | E2 | F | G1 | G2 |
| Vertical / Horizontal Use | 368 | 290 | 60 | 240 | 175 | 110 | 131 | 106 | Ø125 | M14 | 7 | |
Unit: mm
| Spindle Dimension | ||||
|---|---|---|---|---|
| Faceplate | A | B | C | D |
| Yes | Ø22 X 18L | 130 | Ø15 X 20L | 4-M4X 10L,Ø23.5 |
| No | Ø26 X 23L | 112 | Ø15 X 20L | 4-M4X 10L,Ø23.5 |
