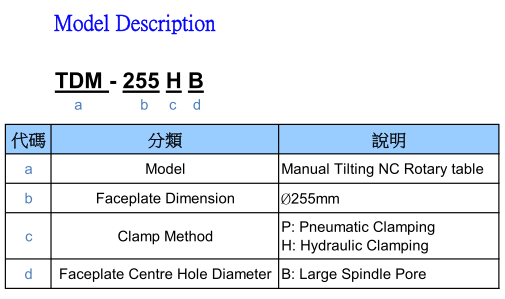

TDM-255HB
Manual Tilting NC Rotary Table (0.001°)

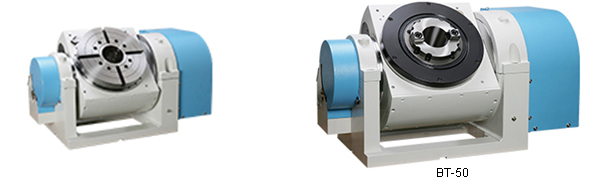

TDM-255HB
Manual Tilting NC Rotary table
- Enhanced highest clamping force, more suitable for heavy cutting.
- Tilting angle rotated by hand, rotary table controls by NC Controller.
- Can do any angle machining.
- Tilt Axis can be extra installed Digital Angle Display TRO-2005, resolution 0.02 degrees.
| Clamp Method | Hydraulic 35kg/cm2 | ||
|---|---|---|---|
| Faceplate Dimension | Ø255mm | ||
| Spindle Through Hole Diameter | Ø80mm | ||
| Faceplate Centre Hole Diameter | Ø80H7mm | ||
| Centre Height | 210mm | ||
| Faceplate T-Slot Width | 12H7mm | ||
| Position Key | 18h7mm | ||
| Servo Motor | Rotary Axis | Tilting Axis | |
| • FANUC | α8i / β12i | Manual | |
| •MELDAS | HF104T/HF154T | ||
| Total Speed Reduction Ratio | 1/120 | 1/72 | |
| Min. Increment Unit | 0.001° | 5° | |
| Indexing Accuracy | 15 (Arc. Sec.) | ||
| Repeatability | 4 (Arc. Sec.) | ||
| Clamp Force | 50kgf-m | ||
| Max. Torque Capacity of Worm Gear | 48kgf-m | ||
| Tilting Range | 0°~105° | ||
| Max. Workpiece of Capacity | • Workpiece Vertical(With Tailstock) | 100(200)kg | |
| • Horizontal | 200kg | ||
| Tool Clamp Device | BT50 | ||
| Net Weight (Without motor) | 210kg | ||
- Tilting Axis can be attached with Digital Angle Display.
- Resolution : 0.02 degree.
Digital Angle Display TRO-2005
- Able to attach BT40 collet Chuck with fixyure and perform auick too-change.
- Grip / Change work piece fast and easy.
- Excellently suit for tool machining.
BT50 Tool Clamp Device
