4HDD-125P
Multi-Spindle Direct Drive Rotary Table
4HDD-125P
Horizontal use, Spindle up, Four Spindle
- DD Servo Motor, No backlash.
- High Speed, 90-degree division time less than 1 second.
- It can be used with any controller and specialized for processing indexing manufacture.
- Min. indexing degree: 0.001 degrees.
- High repeatability.
- The installation of the encoder is dependent upon its accuracy requirement.

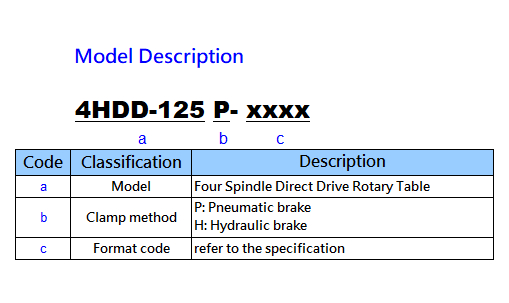

| Popular Model | ◎ |
|---|---|
| Specification | 4HDD-125P-HE15 |
| Use Method | Horizontal use, spindle up |
| Cooling | NO |
| Clamp method | Pneumatic 5 kg/cm2 |
| Faceplate dimension | No faceplate |
| Spindle Through Hole Diameter | NO |
| Spindle nose diameter diameter | Ø30x8L mm |
| Total Height | 231mm |
| Maximum Speed (1 sec.) | 300rpm |
| Continuous Speed | 100rpm |
| Maximum Current(1 sec.) | 8.58A |
| Cont.Current | 2.86A |
| Maximum torque(1 sec.) | 18.6Nm |
| Cont.torque | 6.2Nm |
| Minimum Increment | 0.001° |
| Signal format | ENDAT2.2/22 |
| Resolution | 25bit |
| Positioning accuracy | ±25 (Arc.Sec.) |
| Repeatability | within10 Arc.Sec. |
| Net weight | 104kg |
- Absolute positioning accuracy and repeatability depend on the selected encoder

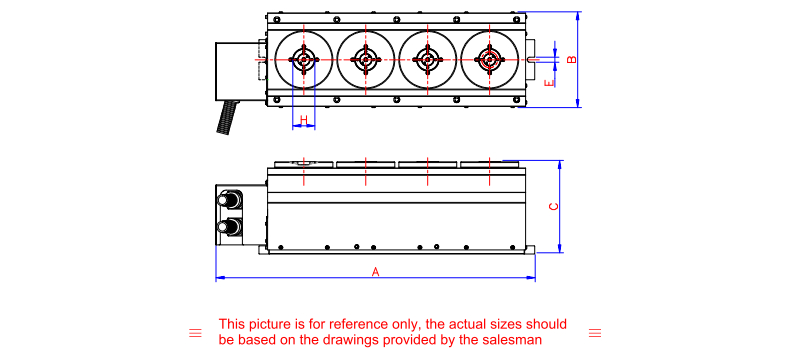

Unit: mm
| 4HDD-125P | Total width(A) | Total thickness (B) | Total height(C) | Spindle through hole(K) | Spindle or plate outer diameter(H) | Spindle length(L) | Locking screw space, Slot width(E) |
|---|---|---|---|---|---|---|---|
| No faceplate | 798.5 | 240 | 231 | NO | Ø55 | --- | 100 , 12 |
