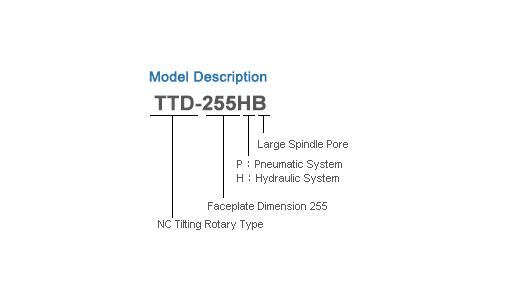

TTD-255H
NC Tilting Rotary Table (0.001°)
TTD-255H
NC Tilting Rotary Type
- Adopting Hydraulic Swelling Surrounding Clamping System, to enlarge clamping force (about other models' 1.2-1.4 times), and ensure heavy-duty continuous cutting.
- Can do tilting angle machining.
- The feature of wear resistant alloy Dual-Lead Worm Gear is high mechanical efficiency of Power transmission, high indexing accuracy and easy adjusted on the backlash.
- Driven by the Servo Motor. Efficiently in position, high accuracy, low noise and suitable for any angles working piece.
- It can be connected with CNC machine as a 5th Axis ( 5th Axis or 4+1Axis).
- It can be connected with single axis controller to connect with CNC machine to perform tilting angel machining (4+1 Axis).
- Minimum indexing degree: 0.001°.
- Tilting range: ±110°.
| Clamp Method | Hydraulic 35kg/cm2 | ||
|---|---|---|---|
| Tilt range | ± 110 ° | ||
| Faceplate Dimension | Ø255mm | ||
| Spindle outer dia. | No | ||
| Table height at 0° position | 334.5mm | ||
| Center height at 90° position | 220mm | ||
| Center bore | • Nose dia: | Ø30H7x20Lmm | |
| • Thru dia: | Ø30mm | ||
| Faceplate T-Slot Width | 12h7mm | ||
| Position Key | 18h7mm | ||
| Servo Motor (Rotary axis) |
•FANUC | α8i / β12i | |
| •MELDAS | HF104T / HF154T | ||
| Servo Motor (Tilting axis) |
• FANUC | α8i / β12i | |
| •MELDAS | HF104T / HF154T | ||
| Rotary axis | Tilting axis | ||
| Total Speed Reduction Ratio | 1/120 | 1/180 | |
| Max. Table rotation speed (r.p.m..motor 3,000r.p.m.) |
25r.p.m | 16.7r.p.m | |
| Clamp torque | 588N.m(60kgf-m) | 686N.m(70kgf-m) | |
| Indexing accuracy (cumulative) | 15 (Arc. Sec.) | 45 (Arc. Sec.) | |
| Repeatability | 4 (Arc. Sec.) | ||
| Net Weight (Without motor) | 330kg | ||
| Allowable wheel torque | Rotary axis |
490N.m (50kgf-m) |
|---|---|---|
| Allowable work weight | 470N.m (48kgf-m) |
|
| Allowable work moment |  |
0° : 120kg |
 |
0-90° : 70kg | |
| Allowable load when table clamped |  |
F: 1170N.m (120kgf-m) |
 |
FxL: 470N.m (48kgf-m) |
|
 |
FxL: 470N.m (48kgf-m) |
|
| Allowable work inertia |  |
 : 0.7kgf-m2 (6.9Kg.cm.sec2) |
