5 Inch Rotary Table
TDE-125P 5 Inch Rotary Table
TDE-125P 5 Inch Rotary Table
TDE-125P 5 Inch Rotary Table
TDE-125P 5 Inch Rotary Table

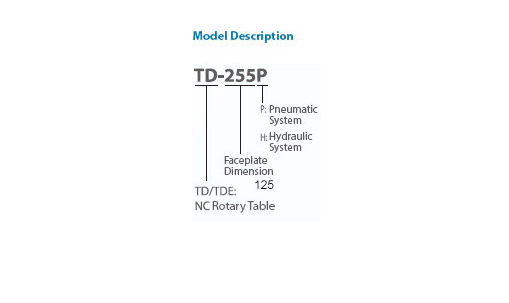

The 5-inch rotary table is equipped with a 125mm diameter panel and a 15mm diameter spindle through the hole. It is a standard series product that uses high-tech cross-roller bearings to ensure the product's high wear resistance and durability. Pneumatic clamping adopts a patented disk-clamping system (Taiwan Patent: 217736), which can increase the clamping force and ensure stability during continuous cutting with heavy duty.

The feature of this product is its wear-resistant alloy double-thread gear, which has efficient power transmission, high-precision indexing accuracy, and easy adjustment of the gap. It is driven by a servo motor, has efficient and accurate positioning, has low noise, and is suitable for workpieces at any angle. Operation, the 5-inch rotary table can be used as the fourth axis of a CNC machine or can be used with a single-axis controller as an additional axis, providing a high-efficiency and high-precision solution for processing workpieces.

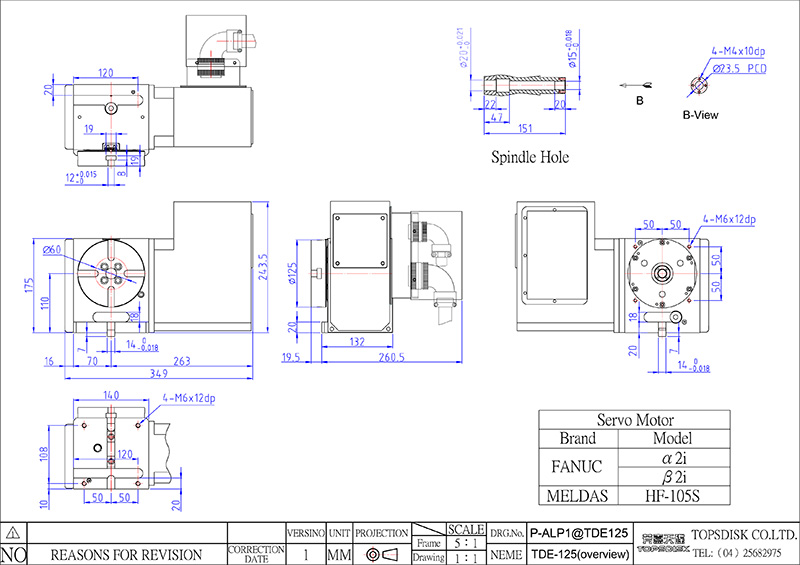

Use Method Vertical Special-Purpose
Clamp Method Pneumatic 5kg/cm2
Faceplate Dimension Ø125mm
Spindle Through Hole Diameter Ø15mm
Faceplate Centre Hole Diameter Ø20H7mm
Centre Height 110mm
Faceplate T-Slot Width 12H7mm
Position Key 14h7mm
Servo Motor • FANUC α2i / β2i
Total Speed Reduction Ratio 1/48
Min. Increment Unit 0.001°
Indexing Accuracy 45 (Arc. Sec.)
Repeatability 4 (Arc. Sec.)
Clamp Force 8kgf-m
Max. Torque Capacity of Worm Gear 15kgf-m
Max. Workpiece of Capacity • Workpiece Vertical
(With Tailstock)
• Horizontal -
Net Weight (Without motor) 25Kg
