NC Tilting Rotary Table (0.001°)

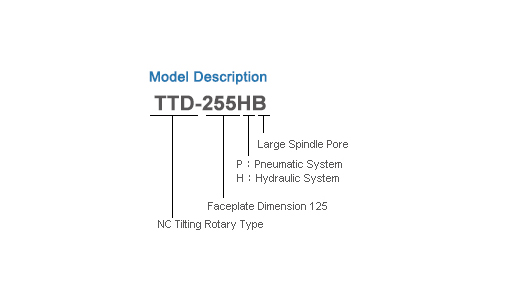

NC Tilting Rotary Type
  • Can do tilting angle machining.
  • The feature of wear resistant alloy Dual-Lead Worm Gear is high mechanical efficiency of Power transmission, high indexing accuracy and easy adjusted on the backlash.
  • Driven by the Servo Motor. Efficiently in position, high accuracy, low noise and suitable for any angles working piece.
  • It can be connected with CNC machine as a 5th Axis ( 5th Axis or 4+1Axis).
  • It can be connected with single axis controller to connect with CNC machine to perform tilting angel machining (4+1 Axis).
  • Minimum indexing degree: 0.001°.
  • Tilting range: ±110°.

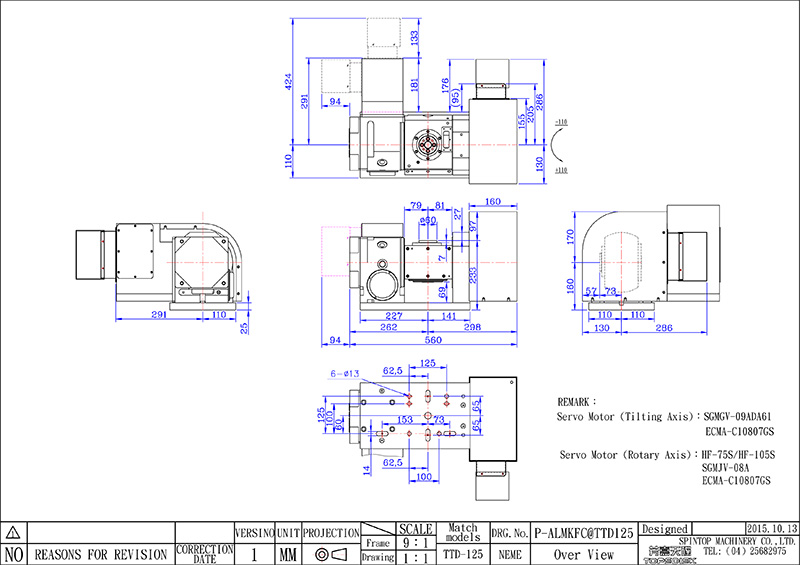

Clamp Method Pneumatic 5kg/cm2
Tilt range ± 110 °
Faceplate Dimension No
Spindle outer dia. Ø60mm
Table height at 0° position 233mm
Center height at 90° position 160mm
Center bore • Nose dia: Ø25H7x18Lmm
•Thru dia: Ø22mm
Faceplate T-Slot Width No
Position Key 14h7mm
Servo Motor
(Rotary axis)
•FANUC α2i / β2i
Servo Motor
(Tilting axis)
• FANUC α4i / β8i
  Rotary axis Tilting axis
Total Speed Reduction Ratio 1/90 1/90
Max. Table rotation speed
(r.p.m..motor 3,000r.p.m.)
33.3r.p.m 33.3r.p.m
Clamp torque 78N.m(8kgf-m) 157N.m(16kgf-m)
Indexing accuracy (cumulative) 45 (Arc. Sec.) 60 (Arc. Sec.)
Repeatability 4 (Arc. Sec.)
Net Weight (Without motor) 95kg
Allowable wheel torque Rotary axis 120N.m
Allowable work weight   156N.m
Allowable work moment 0° : 35kg
0-90° : 20kg
Allowable load when table clamped F: 343N.m
FxL: 78.4N.m
FxL: 156N.m
Allowable work inertia
: 0.7kgf-m2
