EDD-170BP
Direct Drive Rotary Table (0.001°)

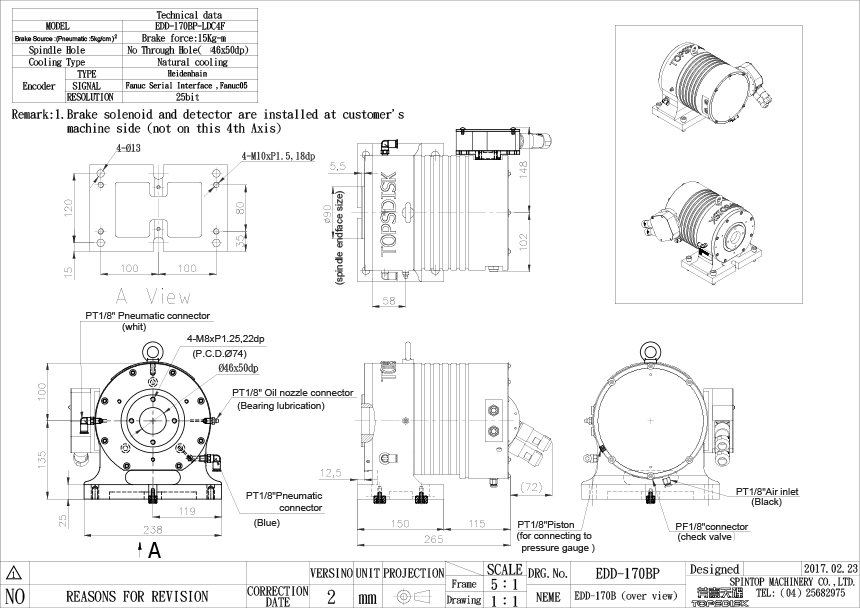

EDD-170BP
Vertical Use
- DD Motor Drive, No backlash.
- High Speed, 90-degree division time less than 1 second.
- It can be used with any controller and specialized for processing indexing manufacture.
- Min. indexing degree: 0.001 degrees.
- High repeatability.
- The installation of the encoder is dependent upon its accuracy requirement.
| Use Method | Vertical use | ||
|---|---|---|---|
| Cooling Circuit Reserve | － | ||
| Cooling Type | Natural cooling | ||
| Clamp Method | Pneumatic 5 kg/cm2 | ||
| Faceplate Dimension | － | ||
| Applicable Panel | Ø170 mm (Optional) | ||
| Spindle through hole diameter | － | ||
| Centre Height | 135 mm | ||
| Solenoid & Detection | Need to be connected | ||
| Encoder format | Heidenhain Serial Interface , EnDAT 2.2/22 25bit |
||
| Fanuc Serial Interface , Fanuc05 25bit |
|||
| Mitsubish Serial Interface, Mit03-4 25bit |
|||
| NIKON Serial abs interface 24bit | |||
| Max. Speed | 200 rpm | ||
| continuous r.p.m | 75 rpm | ||
| Max. Rated current (1sec) | 15 A | ||
| Cont. Rated current | 3 A | ||
| Max. Rated torque (1sec) | 190 Nm | ||
| Cont. Rated torque | 38 Nm | ||
| Min. Increment Unit | 0.001° | ||
| Indexing Accuracy | ±20 Arc.Sec. | ||
| Repeatability | Within 10 Arc.Sec. | ||
| Clamp Force | 15 kgf-m | ||
| Net Weight (Without motor) | 38 kg | ||
| Max Capacity of Workpiece (with tailstock) |
Eccentric Load
|
W：42kg | |
| H：80mm | |||
Balance
Load
|
W：80kg | ||
| D：170mm | |||
| Max. Workpiece load capacity (without tailstock) |
 |
W：30kg | |
| D：170mm | |||
| L：200mm | |||
- Rotating Speed 90°/Sec( not including clamp/unclamp time 0.5 sec)
- When D becomes bigger and bigger, the W will be smaller and smaller.
