TGH-100AB5
Rotary Table specialized for Grinder
TGH-100AB5
CNC Grinder Machine For Rotating Spindle(A-axis)
- Center bore of TGH-100AB5: BT-50.
- Min. indexing degree: 0.001 degree.
- Dual-lead worm gear, high positioning accuracy of transmission system, backlash easy adjustment.
- Driven by the servo motor. Fast positioning, high accuracy, low noise.
- Suitable for machining any angles of workpiece.
| Use Method | Vertical use | |
|---|---|---|
| Clamp Method | - | |
| Faceplate Dimension | - | |
| Spindle Through Hole Diameter | Ø40mm | |
| The size of the front of Faceplate | BT-50 | |
| Centre Height | 100 mm | |
| Position Key | 14h7mm | |
| Servo Motor | YASKAWA | SGMJV-09A / SGMJV-13A |
| DELTA | ECMA-E11315RS | |
| Total Speed Reduction Ratio | 1/40 | |
| Max. Torque Capacity of Worm Gear | 30 kgf-m | |
| Allowable workpiece of Capacity | Vertical | 20kg |
| Horizontal | - | |
| Net Weight (Without motor) | 62kg | |

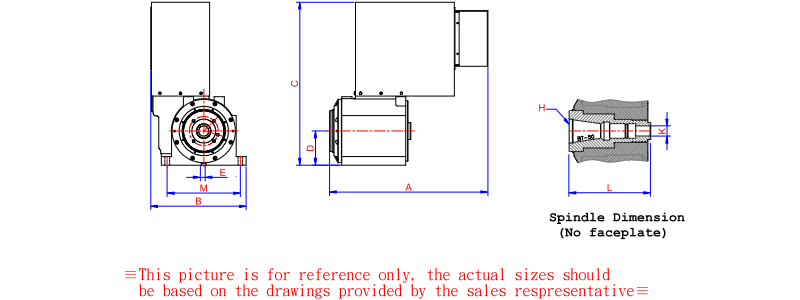

Unit: mm
| TGH-100AB5 | Total width(A) | Total thickness(B) | Total height(C) | Center height(D) | Spindle through hole(K) | Spindle interface(H) | Spindle length(L) | KEY (E) | Pitch -Diameter(M) |
|---|---|---|---|---|---|---|---|---|---|
| No faceplate | 465.5 | 280.6 | 478 | 100 | Ø30 | BT-50 | 239.5 | 14 | 215- Ø14 |
