DGA-301 / DGA-301P
Rotary Table for CNC Grinding Machine(C Axis)
DGA-301 / DGA-301P
Built-in(Spindle up)
- Direct motor drive, no backlash.
- Suitable for simultaneous machining, applied to rotary table for tool axis (C axis).
- Built in cooling circuit.
- Min.division degree: 0.001 degree.
- Install various encoders according to accuracy requirements.
| Popular Model | ◎ | |
|---|---|---|

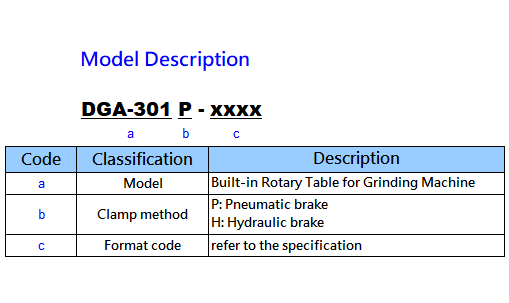

| Specification | DGA-301-RBGD | DGA-301P-RBGD |
| Use Method | Built-in(Spindle up) | |
| Cooling | built in cooling circuit | |
| Clamp method | No Brake | Pneumatic 5 kg/cm2 |
| Spindle Through Hole Diameter | Ø70mm |
|
| Spindle Endface Diameter | Ø75x15L mm |
|
| Solenoid valve and detection | NO | External connection required |
| Maximum Speed (1 sec.) | 150rpm | 150rpm |
| Continuous Speed | 75rpm | 75rpm |
| Maximum Current(1 sec.) | 13.5A / Cooling 22.5A | 13.5A / Cooling 22.5A |
| Cont.Current | 4.5A / Cooling 9A | 4.5A / Cooling 9A |
| Maximum torque(1 sec.) | 171Nm / Cooling 228Nm | 171Nm / Cooling 228Nm |
| Cont.torque | 57Nm / Cooling 114Nm | 57Nm / Cooling 114Nm |
| Minimum Increment | 0.001° | 0.001° |
| Signal format | Biss-C | Biss-C |
| Resolution | 26 bit | 26 bit |
| Positioning accuracy | ±20 (Arc.Sec.) | ±20 (Arc.Sec.) |
| Repeatability | within 10 Arc.Sec. | within 10 Arc.Sec. |
| Clamping Force | NO | 139 kgf-m |
| Net weight | kg | kg |
- 1. The cooler is provided by customer.

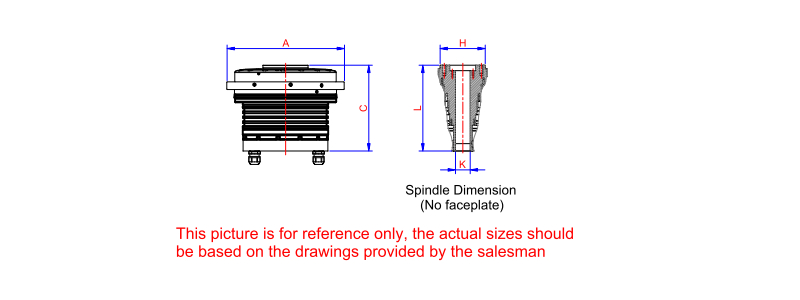

unit: mm
| DGA-301/ DGA-301P |
total width(A) | total height(C) | Spindle through hole(K) | Spindle outer diameter(H) | Spindle length(L) |
|---|---|---|---|---|---|
| No faceplate | 317 | 249.5 | Ø70 | Ø122 | 249 |
