TGH-255Y
Rotary Table specialized for Grinder
TGH-255Y

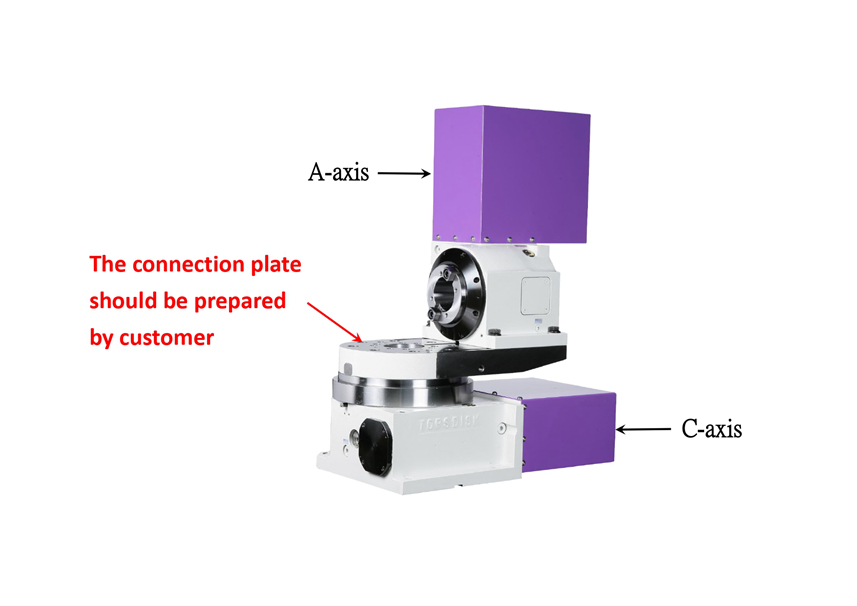

CNC Grinder Machine For Rotary Table (C-axis)
- Center bore of TGH-100AB5: BT-50.
- Min. indexing degree: 0.001 degree.
- Dual-lead worm gear, high positioning accuracy of transmission system, backlash easy adjustment.
- Driven by the servo motor. Fast positioning, high accuracy, low noise.
- Suitable for machining any angles of workpiece.
| Use Method | Horizontal use | |
|---|---|---|
| Clamp Method | - | |
| Faceplate Dimension | - | |
| Spindle Through Hole Diameter | - | |
| The size of the front of Faceplate | Ø143H7mm | |
| Centre Height | - | |
| Position Key | 18h7mm | |
| Servo Motor | YASKAWA | SGMJV-09A / SGMJV-13A |
| DELTA | ECMA-E11315RS | |
| Total Speed Reduction Ratio | 1/72 | |
| Max. Torque Capacity of Worm Gear | 48 kgf-m | |
| Allowable workpiece of Capacity | Vertical | - |
| Horizontal | 250kg | |
| Net Weight (Without motor) | 90kg | |

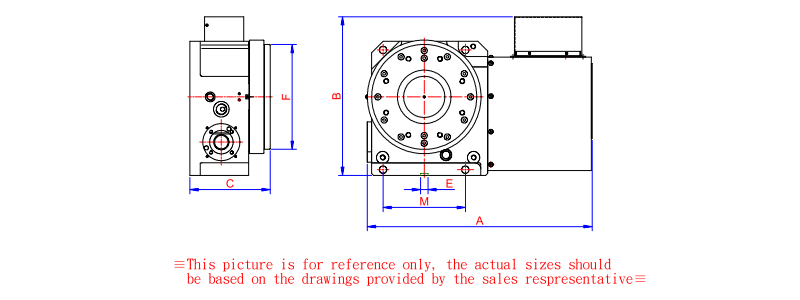

Unit: mm
| TGH-255Y | total width(A) | total thickness(B) | total height(C) | Spindle through hole(K) | Spindle or plate outer diameter(F) | Spindle length(L) | KEY(E) | Pitch-Diameter(M) |
|---|---|---|---|---|---|---|---|---|
| with plate | 546 | 386 | 195 | - | Ø255 | - | 18 | 200-Ø18 |
