DGH-70

Rotary Table for CNC Grinding Machine(A Axis)
DGH-70 Rotary Table for CNC Grinding Machine
DGH-70 Rotary Table for CNC Grinding Machine
DGH-70 Rotary Table for CNC Grinding Machine
DGH-70 Rotary Table for CNC Grinding Machine
DGH-70 Rotary Table for CNC Grinding Machine
DGH-70 Rotary Table for CNC Grinding Machine
DGH-70
Vertical use (spindle to the side)
  • Direct motor drive, no backlash.
  • suitable for small tools grinding.
  • Min.division degree: 0.001 degree.
  • Install various encoders according to accuracy requirements.
  • Spindle is W25 interface.
Popular Model

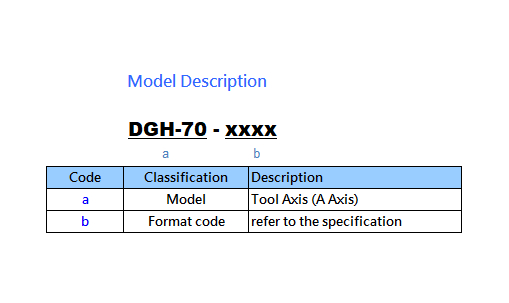

Specification DGH-70-RBGD
Use Method Vertical(spindle to the side)
Cooling built in cooling circuit
Clamp Method No Brake
Spindle Through Hole Diameter Ø30mm
Spindle Endface Diameter Ø70x13mm
Center height 120mm
Maximum Speed 200rpm / 30min
Continuous Speed 100rpm
Maximum Current(1 sec.) 3A / Cooling 4A
Cont.Current 1A / Cooling 2A
Maximum torque (1 sec.) 35.4Nm / Cooling 47.2Nm
Cont.torque 11.8Nm / Cooling 23.6Nm
Minimum Increment 0.001°
Signal Format Biss-C
Resolution 26bit
Positioning accuracy ±20 (Arc.Sec.)
Repeatability within 10 Arc.Sec.
Net weight(not including cylinder set) 35 kg
  • 1. The cooler is provided by customer.

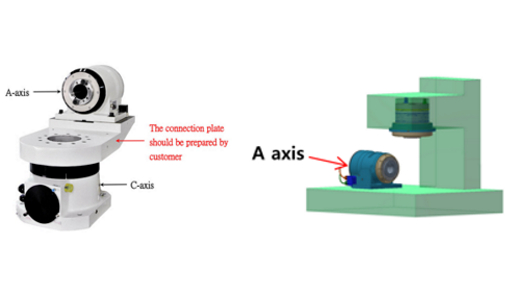

    2. When rotating spindle matched with rotary table, the connecting plate is prepared by customer.

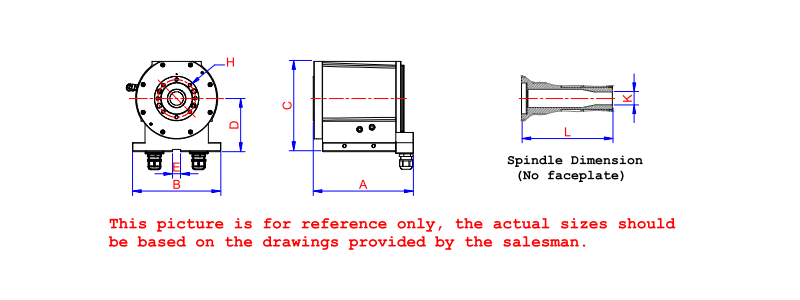

unit: mm

DGH-70 total width(A) total thickness(B) total height(C) Center height(D) Spindle through hole(K) Spindle interface(H) Spindle length(L) Locking screw space, Slot width(E)
No faceplate 226.5 200 204 120 Ø30 100 , 70 , PCD85-M8 206 170 , 18
