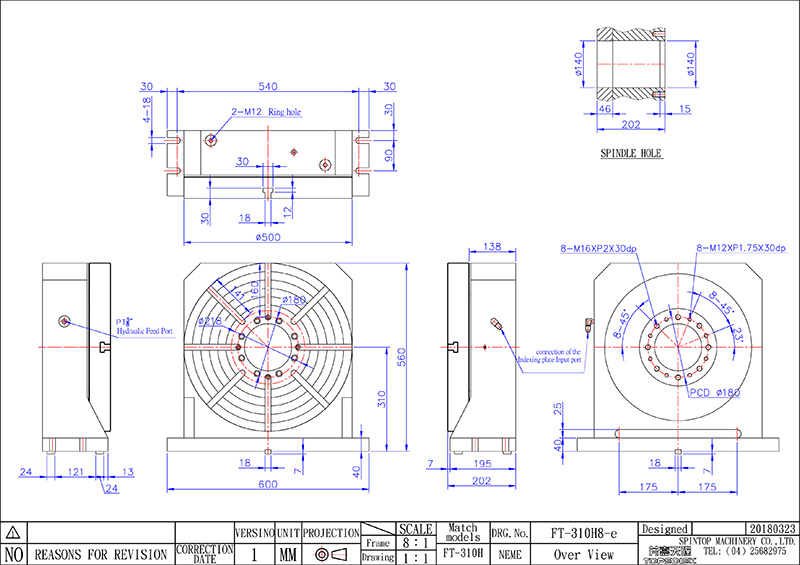

FT-310H
Faceplate Tailstock
FT-310H
- Pneumatic Clamping: adopt complete disc-clamping system to enhance clamping force and to ensure continuous heavy-duty cutting
- Hydraulic Clamping: adopt complete encircle hydraulic clamping system.
- Able to be matched with TD, CV3,NC3 series.
- If tailstock match with NC3, CV3 series, please select have delay valve(D)one.
| Clamp Method | Hydraulic 35kg/cm2 |
|---|---|
| Faceplate Dimension | Ø500mm |
| Spindle Through Hole Diameter | Ø140mm |
| Centre Height | 310mm |
| Clamp Force | 250kgf-m |
| Net Weight (Without motor) | 250kg |
