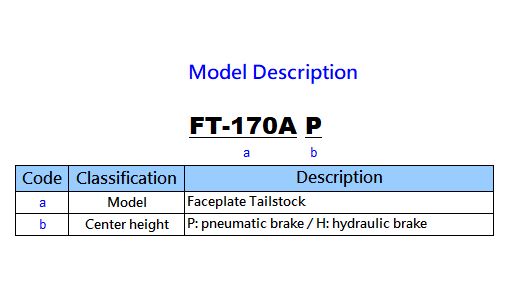

FT-170AP
Faceplate tailstock
FT-170AP
- Clamping adopt clamping disc system.
- Support workpieces or fixtures, can multi-faces machining.
- Able to be matched with TD, CV3,NC3 series.
- If tailstock match with NC3, CV3 series, please select have delay valve(D)one.
| Clamp method | pneumatic 5kg/cm2 |
|---|---|
| Faceplate Dimension | Ø170mm |
| Applicable plate | Ø200mm(optional) |
| Spindle through hole diameter | Ø20mm |
| Center height | 170±0.05mm |
| Clamp force | 16kgf-m |
| Net weight (Faceplate) | 23kg |
Unit: mm
| FT-170A | Total width(A) | Total thickness(B) | Total height(C) | Center height(D) | Spindle through hole(K) | Spindle or outer diameter of plate(H) | Spindle length(L) | Locking screw space, T-slot width(E) |
|---|---|---|---|---|---|---|---|---|
| Faceplate | 245 | 101.5 | 255 | 170 | Ø20mm | Ø170mm | 101.5mm | 100, 14key |
| Faceplate | 245 | 101.5 | 255 | 170 | Ø20mm | Ø200mm | 101.5mm | 100, 14key |
