FT-160A P/H
Faceplate Tailstock

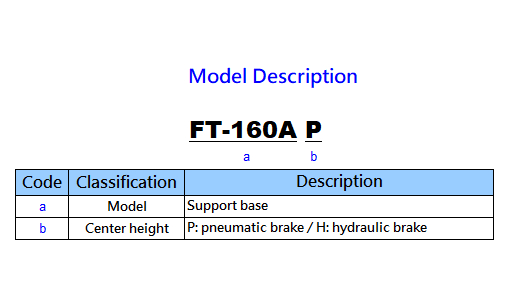

FT-160A P/H
- Clamping adopt clamping disc system.
- Support workpieces or fixtures, can multi-faces machining.
- Able to be matched with TD, TE, VE series.
| Specification | FT-160AP | FT-160AH |
|---|---|---|
| Brake Circuit | Normal Unclamping | |
| Brake method | Clamping Disc system | |
| Clamp method | Pneumatic 5kg/cm2 | Hydraulic 20kg/cm2 |
| Faceplate Dimension | Ø170mm | |
| Spindle through hole diameter | Ø20mm | |
| Center height | 160mm | |
| Clamp force | 16kgf-m | 30kgf-m |
| Net weight (Faceplate) | 25kg | |

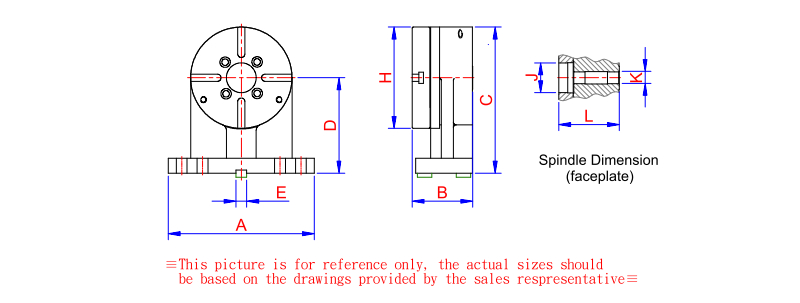

Unit: mm
| FT-160A | Total width(A) | Total thickness(B) | Total height(C) | Center height(D) | Spindle through hole(K) | Spindle or outer diameter of plate(H) | Indicating center hole(J) | Spindle length(L) | Locking screw space, T-slot width(E) |
|---|---|---|---|---|---|---|---|---|---|
| Faceplate | 245 | 101.5 | 245 | 160 | Ø20 | Ø170 | Ø50x15L | around 101.5 | 130&200, 18 |
