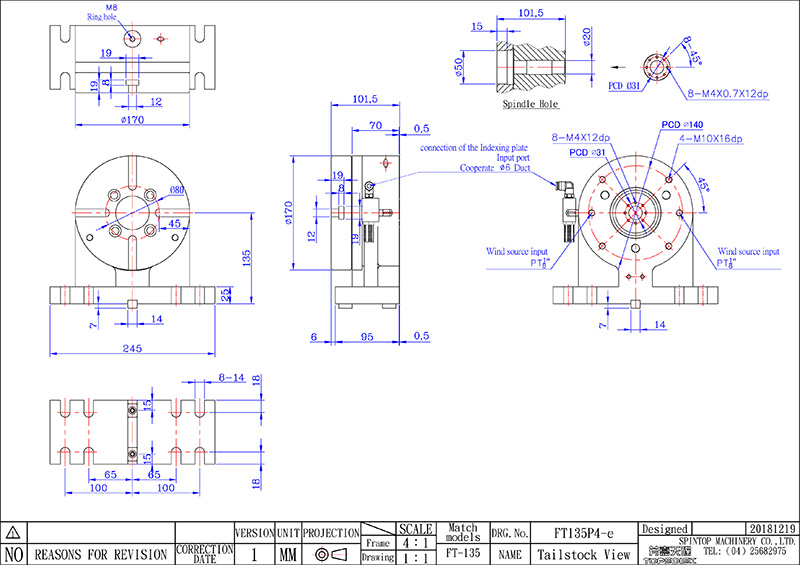

FT-135P
Faceplate Tailstock
FT-135P
- Pneumatic Clamping: adopt clamping disc system to enhance clamping force and to ensure continuous heavy-duty cutting.
- Hydraulic Clamping: adopt complete encircle hydraulic clamping system.
- Able to be matched with TD, TE series.
| Clamp Method | Pneumatic 5kg/cm2 |
|---|---|
| Faceplate Dimension | Ø170mm |
| Spindle Through Hole Diameter | Ø20mm |
| Centre Height | 135mm |
| Clamp Force | 16kgf-m |
| Net Weight (Without motor) | 22kg |
