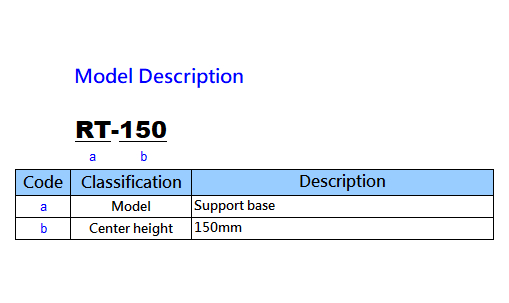

RT-150
Support Base
RT-150
- Support for NC Rotary Table.
- Support for workpieces or fixtures, can multi-faces machining.
- No brake, No faceplate.
| Clamp method | No brake |
|---|---|
| Faceplate dimension | No faceplate |
| Spindle through hole diameter | Ø30mm |
| Center height | 150mm |
| Clamp force | NO |
| Net weight (No faceplate) | 11kg |
unit: mm
| RT-150 | Total width(A) | Total thickness(B) | Total height(C) | Center height(D) | Spindle through hole(K) | Spindle outer diameter(H) | Spindle length(L) | Locking screw space, T-slot width(E) |
|---|---|---|---|---|---|---|---|---|
| No faceplate | 150 | 106 | 200 | 150 | Ø30 | Ø40 | 96 | middle&130, 14 |
