TP-160
Index Table

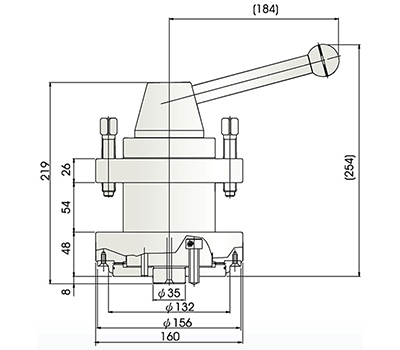

TP-160
Turret for Lathe
- Suitable for simple type CNC Lathe.
- Manual Clamping.
- Repeatability 2μm With Built-In 2pcs Hirth Coupling, Repeatability 2μm.
- Brilliant design: simply designed, robust, high durability, suitable for heavy cutting.
Repeatability 2μm With Built-In 2pcs Hirth Coupling, Repeatability 2μm.
| Turret Size | 160mm |
|---|---|
| Space for place Tool and Tool-Holder | 25×54Hmm |
| Division | 24 Division |
| Clamp / Unclamping Stroke | 3mm |
| Rotation direction | Left or Right |
| Drive Method | Manual |
| Hirth Coupling size (2Pcs) | 24T×φ120mm |
| Net Weight (kg) | 20kg |
