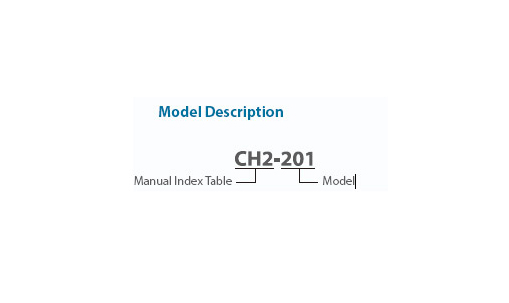

CH2-201
Manual Rotary Indexing Table
CH2-201
HORIZONTAL Manual Index Table (MINI ORDER 10 SETS)
- Adopted 2pcs type HIRTH COUPLING, with high index accuracy.
- Powerful Pneumatic clamping, with heavy cutting endurance.
- Easy, Energy Saving Rotation. User-friendly operation.
- Suitable for Boring Machine, Milling Machine, Grinder, and Drilling Machine.
- Suitable for machining Jig at Traditional Milling Machine.
| Use Method | Horizontal use only |
|---|---|
| Clamp Method | Pneumatic 5kg/cm2 |
| Faceplate Dimension | Ø200mm |
| Faceplate Centre Hole Diameter | Ø50X15Deep |
| Min. Indexing Degree | 7.5° |
| Indexing Accuracy (Arc. Sec.) | ±3 (Arc. Sec.) |
| Max. Load (Horizontal) | 100kg |
| Net Weight | 18kg |
| Optional Accessory:8 " Manual 3-Jaw Chuck | ※ MINI ORDER 10 SETS. |
Unit: mm
