Programmable Controller - Simple 2010
Simple 2010
Programmable Controller
- Can be connected with CNC Machine through M-Codes.
- Can be directly start signal through external controller or another supplementary switch.
- Built-in clamp system, do not need extra input command.
- Adopt AC servo motor that with high stability and anti-signal interference.
- High precision, high torque and high speed.
- Contains handwheel (MPG), to facilitate correcting the workpiece.
- Exclusive angle's transmission function, can connect directly with CNC machines, unnecessary to learn programming input.
- Adopt the latest touch screen, that can displays the most complete information, and easy to operate.
- Can drive direct drive motor (DD Motor) with rotary table.
Applicable Models
| Model/Label | Rotary axis | Tilting axis | Dual-axis |
|---|---|---|---|
| YASKAWA | YASKAWA | YASKAWA | |
| TDE-125 / TE-125A | SP10-Y7J400 | ||
| TD-170 / TD-170L / TE-170 | SP10-Y7G900 | ||
| TD-200 / TE-200 | SP10-Y7G900 | ||
| TD-255 / TD-255L / TDE-255 | SP10-Y7G1300 | ||
| TD-320 / TD-400 | SP10-Y7G2000 | ||
| TD-500 | SP10-Y7G3000 | ||
| TTD-125 | SP10-Y7J400 | SP10-Y7G900 | SP10-Y7J400-Y7G900 |
| TTD-255 | SP10-Y7G900 | SP10-Y7G1300 | SP10-Y7G900-Y7G1300 |

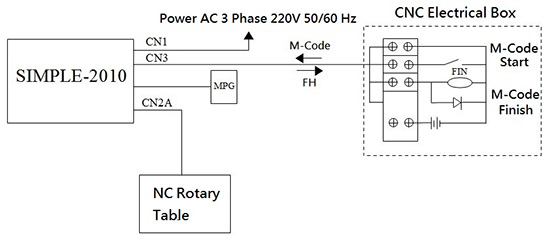

- CNC machine send a M-code. (Example: M80)
- Start the Simple 2010 and make rotary table rotate.
- Execute finish, Simple 2010 send a finish signal to CNC machine.
- CNC machine continue to execute next step CNC program.
