Multi-Spindle NC Rotary Table (0.001°)
3-Spindle NC Rotary Table (Left Hand Type)
  • Adopted high-tech Cross Roller Bearing.
  • Pneumatic clamping adopted patented disk-clamping system (Taiwan PAT. : 217736 ) to enlarge clamping force and ensure heavy-duty continuous cutting.
  • The feature of wear resistant alloy Dual-Lead Worm Gear is high mechanical e-ciency of power transmission, high indexing accuracy, and easy adjusted on the backlash.
  • Driven by the servo Motor. E-ciently in position, high accuracy, Low noise and suitable for any angles working piece.
  • It can be connected with CNC machine as a 4th Axis or matched with Single Axis Controller as an additional Axis.
  • Left Hand Type :Change work piece fast and easy.
Use Method Vertical Special-Purpose
Clamp Method Pneumatic 5kg/cm2
Faceplate Dimension Ø125mm
Thru-Hole Dia Ø22mm
Faceplate Centre Hole Diameter Ø22H7mm
Centre Height 110mm
Faceplate T-Slot Width 12H7mm
Position Key 14h7mm
Servo Motor • FANUC α4i
Total Speed Reduction Ratio 1/90
Min. Increment Unit 0.001°
Indexing Accuracy 45 (Arc. Sec.)
Repeatability 4 (Arc. Sec.)
Clamp Force 15kgf-m
Max. Torque Capacity of Worm 15kgf-m
Max. Load • Vertical
(With Tailstock)
• Horizontal 100kg
Net Weight (Without motor) 87kg
Unit: mm

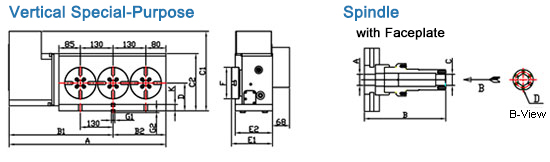

The outline of dimension
TD-125-3L Servomotor cover type A B1 B2 C1 C2 D E1 E2 F G1 G2 K
Vertical Special-Purpose 632 413 210 2520 227 110 163 148 Ø125 M14 7 25
Unit: mm
Spindle Dimension
Faceplate A B C D
Yes Ø22 X 25L 324 Ø22 X 20L 6-M6X15L,Ø31
