Direct Drive Rotary Table (0.001°)
Horizontal Use
  • DD Servo Motor, No backlash.
  • High Speed, 90-degree division time less than 1 second.
  • It can be used with any controller and specialized for processing indexing manufacture.
  • Min. indexing degree: 0.001 degrees.
  • High repeatability.
  • The installation of the encoder is dependent upon its accuracy requirement.
Use Method Horizontal use
Cooling Circuit Reserve yes
Cooling Type Natural cooling Liquid cooling
Clamp Method Pneumatic 5 kg/cm2

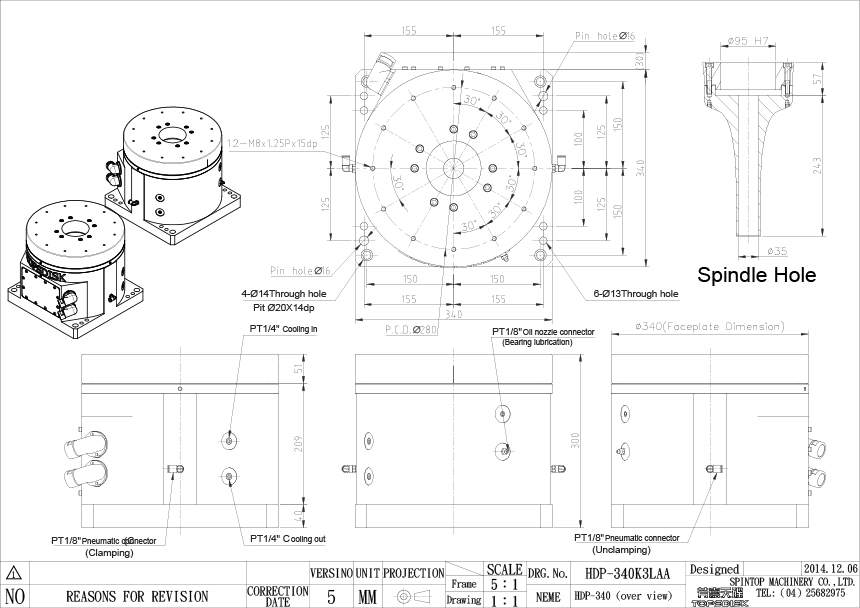

Faceplate Dimension Ø340 mm
Spindle through hole diameter Ø35 mm
Centre Hole Dia Ø95x57L mm
Total Height 300 mm
 Solenoid & Detection Need to be connected
Encoder format Tamakawa Smart ABS 17bit
Ranishaw ABZ 20bit
Hi Speed 200 rpm
continuous r.p.m 75 rpm
Max. Rated current (1sec) 9 A
Cont. Rated current 3 A 6 A
Max. Rated torque  (1sec) 225 Nm
Cont. Rated torque  75 Nm 150 Nm
Min. Increment Unit 0.001°
Indexing Accuracy ±20 Arc.Sec.
Repeatability Within 10 Arc.Sec.
Clamp Force 50 kgf-m
Net Weight (Without motor) 150 Kg
