DH3-340C
Direct Drive Index Table

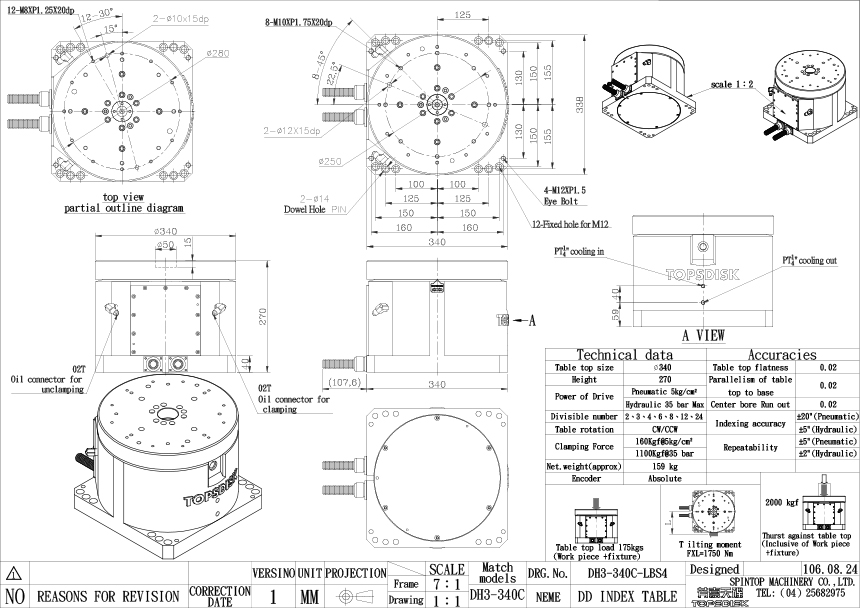

DH3-340C
Horizontal Use
  • DD Motor Drive, No backlash.
  • High Speed, 90-degree division time less than 1 second.
  • It can be used with any controller and specialized for processing indexing manufacture.
  • Min. indexing degree: 5 or 15 degrees.
  • High repeatability.
  • Can match the Circular faceplate, to be a ROTARY INDEXING SPM.
  • Can match the Square faceplate, to be an indexing table of horizontal machining machine.
  • It's also can be an APC of moving column machine.
Use Method Horizontal use
Cooling Circuit Reserve yes
Cooling Type Natural cooling Liquid cooling
Clamp Method Pneumatic 5 kg/cm2
Hydraulic 35Kg/cm2
Faceplate Dimension Ø340mm
Spindle through hole diameter
Centre Hole Dia Ø50x15L mm
T-Slot Width
Total Height 270 mm
Solenoid & Detection Need to be connected
Encoder format Tamakawa Smart ABS 17bit
Hi Speed 150 rpm
continuous r.p.m 75 rpm
Max. Rated current (1sec) 15 A
Cont. Rated current 3 A 6 A
Max. Rated torque (1sec) 225 Nm
Cont. Rated torque 75 Nm 150 Nm
Min. Increment Unit 15°
division
(by controller setting)
standard:2、3、4、6、8、12、24
special:5、9、10、16, etc
Indexing Accuracy ±20 Arc.Sec.
±5 Arc.Sec.
Repeatability ±5 Arc.Sec.
±2 Arc.Sec.
Clamp Force 160kgf-m(1600N)
1100kgf-m(11000Nm)
Net Weight (Without motor) 159 kg
